In palisade fences the profiles of filling could be arranged vertically or horizontally. Choose from models with a very light structure (model range PP001/PP002) and those with a slightly more massive shape (model P64).
Palisade fences look great with both traditional and modern architecture, and thanks to the wide range of variants, they can be easily adapted and personalized to the needs and tastes.
In the PP001(N) variant, the filling sections are welded onto the supporting structure of gates, wickets and spans.
In the PP001(W) variant, the filling profiles run through the supporting structure of gates, wickets and spans.
In the PP001(CC) variant, the filling profiles run through the load-bearing structure of gates, wickets and spans rotated 45 degrees to the property.
In the PP001(CC) variant, the filling profiles run through the load-bearing structure of gates, wickets and spans rotated 45 degrees to the property and are additionally sharpened at the ends.
Konsport fences from the category of light vertical and horizontal palisades include the following models: PP001, PP002, PP002 (P) and P64. Each of the models is characterized by a different structure, type of filling and arrangement.
In the PP001 model, there are 4 sub-variants of the fences C, CC, W and N. Each of the sub-variants has a slightly changed arrangement or shape of the filling. In the PP001 model, the construction frame of gates and wickets is based on a metal profile with a cross-section of 60/40/2 mm. The maximum width of PP001 self-supporting and swing gates is 7500 mm. However, it should be remembered that in the case of self-supporting gates whose width exceeds 5800 mm, the structure is divided into parts that require bolting before assembly (bolted gate). The folding gate system is not available for fences in the PP001 category.
How to assemble the Konsport self-supporting gate ? – Video tutorial
Fences in the PP002 and PP002 (P) categories are based on a metal frame with a cross-section of 60/40/2 mm. Both models use the same filling in the form of a 25/25/1.5 mm profile. In the PP002 model, the filling is arranged vertically, and in the PP002 P model, the sections are arranged horizontally. The filling spacing is different. In the PP002 model it is approx. 80 mm, and in the PP002 P model it is slightly smaller and is at the level of 60 mm.
The PP002 model is suitable as a solution for industrial applications. Of all the fencing models available in the Konsport offer, the PP002 allows you to achieve a width of 10,000 mm (screwed gate). For the PP002 (P) model, the maximum construction width of the self-supporting and swing gate is 7500 mm.
For fences in the PP002 and PP002 (P) categories, the folding gate system is available for both single-leaf gates and swing gates.
See when to use a folding gate …
In the P64 model, a profile with a cross-section of 60/50/2 mm is used for the frame of gates and wickets. The 60/50/1.5 mm profile is used for filling, laid horizontally one after the other. The spacing for the filling profiles is about 40 mm. For the P64 model, the maximum width of the self-supporting and up-and-over gate structure is 7500 mm. The P64 model is also offered in a variant of folding gates.
Konsport fences undergo a series of tests, certifications and approvals. The production process of metal fences is confirmed by independent ISO 9001 auditors. Welding standards characterizing products of this type guarantee long-term durability of metal connections and welds. The obtained certificates confirm the durability of the products and resistance to weather conditions for many years. The process of welding and corrosion resistance of metal parts is related to the painting process. An independent research institute confirms the durability of paint coatings in terms of the thickness of the paint coating and primers used to protect critical structural elements. Cyclical tests of selected product samples and metal details are also carried out in special salt chambers. These tests confirm the durability of paint coatings against harmful weather conditions.
Download the assembly instructions for self-supporting gates, swing gates and Konsport wickets
Palisade fences from the PP001 series are traditional and proven models of lightweight vertical palisades.
It is characterized by a delicate cut and simple form. The light line of the fence does not come to the fore, emphasizing the qualities of the property. It is available in versions W, N, C and CC.
Depending on the variant, the filling profiles can:
A simple, classic palisade fence with a vertical filling system.
Vertical profiles with a cross-section of 25/25 mm embedded in a solid frame with a cross-section of 60/40. The classic line of PP 002 fences is a model solution for traditional architecture. It will emphasize the appearance of the house, but it will not dominate it. Thanks to the large clearances, the property and the garden will be exposed.
Characteristics:
A simple, classic palisade fence with horizontal filling.
It looks similar to the PP002 model, but the infill used is placed vertically. This model, due to its light form, emphasizes the advantages of the garden and the property.
This product is dedicated to all those who do not like the feeling of being enclosed, heavy architectural forms, need space and light.
Characteristics:

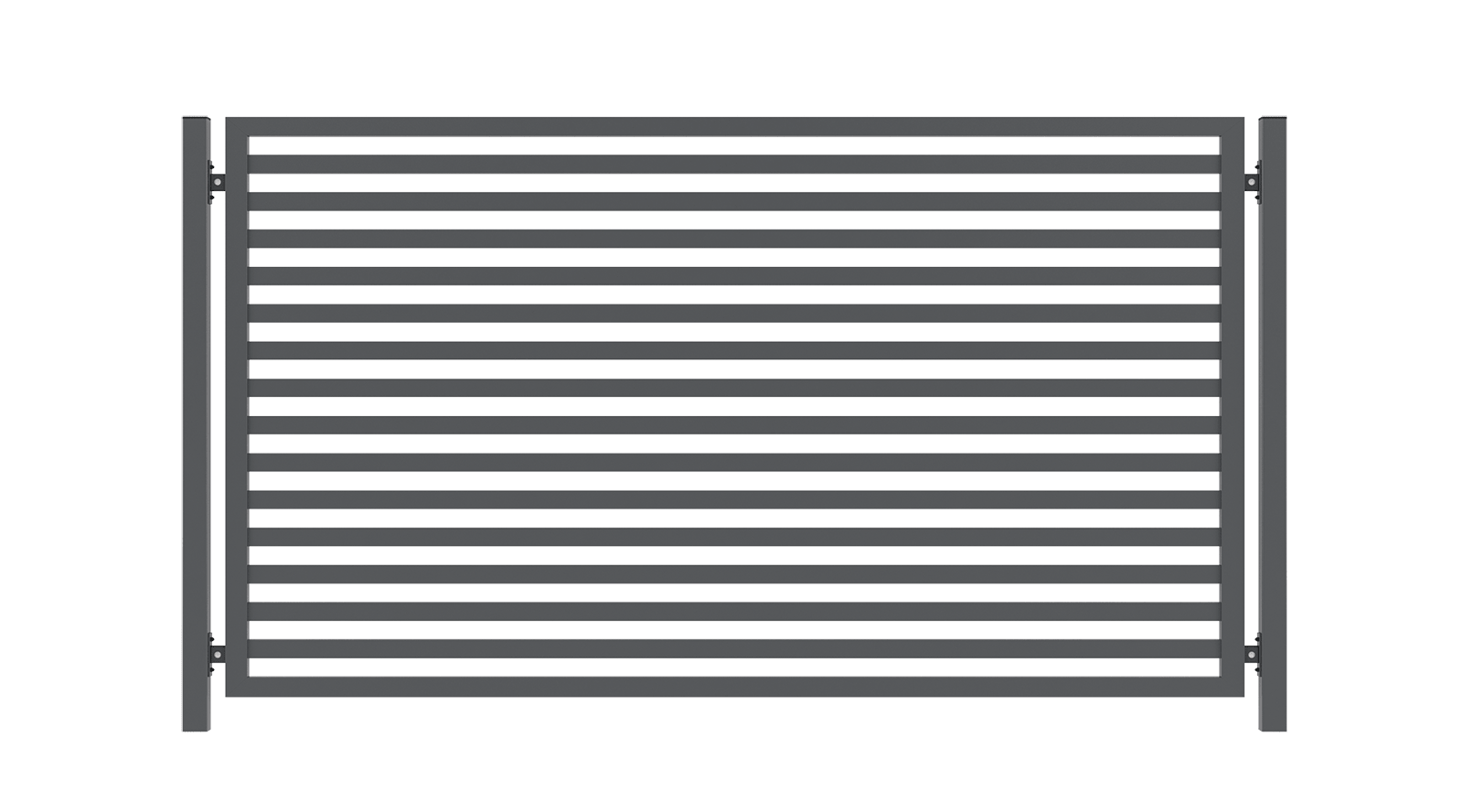

A simple, classic palisade fence with horizontal filling.
Thanks to the modern style, the fence is a great choice for houses with a geometric shape. The P64 palisade fence is characterized by horizontally arranged profiles that give an interesting appearance. The clearance between the filling profiles is 40 mm, which allows for a slight view of the property from the street side. The original form of the fence will undoubtedly emphasize the interesting arrangement of the garden.
Characteristics:
It enables you not to use guiding posts. The top guide can be attached either to the wall or to posts of the minimum diameter of 100x100mm. The alternative top guide is unavailable for the following models of palisade fences (PS001, PS002, PS003) and light palisades (PP001 N, W, C, CC, Verticale).
An accessory designed for light palisades from Konsport. It allows for attachment of the gate automation kits’ arms to the gate leaves. The construction ensures a variety of possibilities to adjust the bracket placement in order to achieve the most efficient work of the gate automation kits’ arms.
An additional solution that covers the clearance between the swing gate leaves. The massive construction of the plate covers the whole clearance, thus ensuring more privacy. In addition, it improves the visual appearance of the fence, especially in the case of the models of compact and closed construction.
There are 11 configuration options to make your daily routines easier. Open the wicket and / or the gate with a mobile application (Android/iOS), select options with a digital code lock or a biometric lock. Also, do not forget about extras: an impressive laser-cut property number with a backlight, LED lamp and electric socket.
Have you got too little space to open a conventional swing gate? Choose a folding gate. It will be an ideal solution whenever there is not enough space between the entrance and the building, the driveway is too steep or there is a turn right behind the gate.
Build your fence on a solid construction. Our offer includes simple or brick textured concrete slabs. Would you rather go for a more impressive pattern? Check the version of the XPS slabs with a plaster or polyester plate decoration.
Open the gate with a remote control or mobile application. Upgrade your configuration with a gate automation kit post which includes a drive from the Italian brand BR. Our offer includes drives designed for self-supporting and swing gates. A solid construction of the post and reliable drives from BR guarantee faultless operation for many years.
A simple gadget that will keep you safe home. The ability to regulate the pace of work (speed) and pressure.
It is only available together with the Konsport gate automation kit post. The solution facilitates installation of a self-supporting gate due to an integrated trolley perfectly selected as per the length of the gate.
A perfect gadget for those that say a letterbox disturbs the look of the fence. The Invisible Post Box has been designed just for them. The letterbox looks very discreet, it does not stick outside the fence line, thus keeping an aesthetic line with no bumps or protruding elements. (*available with the models p82 and p102).
A lamp equipped with a dusk sensor. It is compatible with all the 11 options of the Konsport EQ post. It is made of stainless steel of the same texture as any other equipment option of the EQ post. The lamp illuminates the equipment panel which makes its night operation easier.
Is the regular colour chart not enough for you? Select a fence coated with a metallic paint or in the fine structure variant.
Iron out even the smallest details of fence. Replace regular handrails with impressive stainless steel ones. Their solid shape and simple design will make your fence remarkably elegant. / The long handrail in the wicket and swing gate is installed in accordance with the visualization (the handrail is instalThe installed equal with the bottom frame of the wicket and the gate or centrally).
