The DIVERSO model is an offer for everyone who prefers to take matters into their own hands and design their dream fence on their own. Konsport offers a model in which the filling pattern can be arranged at your own project. You just need to follow a few simple rules and choose from the available filling profiles. An easy-to-use wizard helps in the design process.
Create your own unique composition or get inspired by Konsport standard models.
The filling of the span includes profiles with a cross-section of 80/20/1.2 mm (the quantity of this profile depends on the total height of the span) / 40/20/1.5 mm (10 pieces) / 20/20/1.5 mm (6 pieces) . Spacing between sections: 15 mm.
The filling of the span includes profiles with a cross-section of 80/20/1.2 mm / 40/20/1.5 mm. Spacing between sections: 40 mm.
The filling of the span includes profiles with a cross-section of 80/20/1.2 mm / 40/20/1.5 mm / 20/20/1.5 mm. Spacing between sections: 15 mm.
The greatest advantage of the DIVERSO model is the possibility of interfering with the filling pattern. By manipulating the order and type of sections, it is possible to create an individual pattern repeated on all types of fencing (from spans through wickets, swing gates, folding gates, gate-wickets to self-supporting gates). The only condition is to maintain a minimum 10-mm gap between any sections. Thanks to this, the customer can create an original, non-standard pattern of the entire line.
DIVERSO is also the name of a family of fences marked successively as DIVERSO 1/ DIVERSO 2/ DIVERSO 3, in which the same construction and identical infill profiles were used as for the classic DIVERSO. In master projects, however, it is not possible to manipulate the fill on your own.
The DIVERSO model is based on the structure and filling known from the P82, MIX and P102 models. It is a kind of combination of the best features of all these models, starting from the construction, through filling and a range of accessories and solutions dedicated to the P82 family of fences.
Konsport fences undergo a series of tests, certifications and approvals. The production process of metal fences is confirmed by independent ISO 9001 auditors. Welding standards characterizing products of this type guarantee long-term durability of metal connections and welds. The obtained certificates confirm the durability of the products and resistance to weather conditions for many years. The process of welding and corrosion resistance of metal parts is related to the painting process. An independent research institute confirms the durability of paint coatings in terms of the thickness of the paint coating and primers used to protect critical structural elements. Cyclical tests of selected product samples and metal details are also carried out in special salt chambers. These tests confirm the durability of paint coatings against harmful weather conditions.
All constructions of self-supporting gates, swing gates and wickets in the DIVERSO/1/2/3 models are based on a steel frame with a cross-section of 80/40/2. In all models, from classic DIVERSO to model DIVERSO, the same set of profiles is used in the filling:
The model is available with a folding gate mechanism in a variant of single- and double-leaf gates. It is also used on the industrial market, because for self-supporting and overhead doors it is possible to make structures with a maximum width of 7500 mm.
Download the assembly instructions for self-supporting gates, up-and-over gates and Konsport wickets
DIVERSO designing a fence pattern on its own receives 4 profiles of different dimensions at its disposal. It is possible to arrange any pattern using the available sections. Just remember to keep a minimum spacing of 10 mm between the sections.
Available:
In the Konsport offer, the DIVERSO model is available in the form of ready-made, predefined patterns. These models have a standardized arrangement of infill profiles. Changing the order and spacing in master models is not possible.
If the width of the span or the width of the infill in self-supporting gates, swing gates, folding gates, single-leaf gates, asymmetric gates and gate-wickets exceeds 1500 mm, then the structure is supplemented with an additional flat bar to prevent deformation of the sections. A flat bar is used in every structure containing at least one section with a cross-section of 20/20/1.5 mm.
It enables you not to use guiding posts. The top guide can be attached either to the wall or to posts of the minimum diameter of 100x100mm. The alternative top guide is unavailable for the following models of palisade fences (PS001, PS002, PS003) and light palisades (PP001 N, W, C, CC, Verticale).
An accessory designed for light palisades from Konsport. It allows for attachment of the gate automation kits’ arms to the gate leaves. The construction ensures a variety of possibilities to adjust the bracket placement in order to achieve the most efficient work of the gate automation kits’ arms.
An additional solution that covers the clearance between the swing gate leaves. The massive construction of the plate covers the whole clearance, thus ensuring more privacy. In addition, it improves the visual appearance of the fence, especially in the case of the models of compact and closed construction.

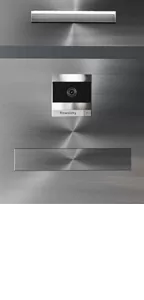

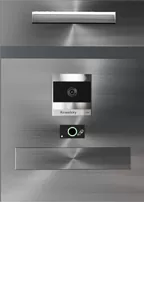

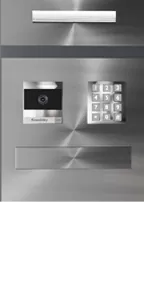

There are 11 configuration options to make your daily routines easier. Open the wicket and / or the gate with a mobile application (Android/iOS), select options with a digital code lock or a biometric lock. Also, do not forget about extras: an impressive laser-cut property number with a backlight, LED lamp and electric socket.
Have you got too little space to open a conventional swing gate? Choose a folding gate. It will be an ideal solution whenever there is not enough space between the entrance and the building, the driveway is too steep or there is a turn right behind the gate.
Build your fence on a solid construction. Our offer includes simple or brick textured concrete slabs. Would you rather go for a more impressive pattern? Check the version of the XPS slabs with a plaster or polyester plate decoration.
Open the gate with a remote control or mobile application. Upgrade your configuration with a gate automation kit post which includes a drive from the Italian brand BR. Our offer includes drives designed for self-supporting and swing gates. A solid construction of the post and reliable drives from BR guarantee faultless operation for many years.
A simple gadget that will keep you safe home. The ability to regulate the pace of work (speed) and pressure.
It is only available together with the Konsport gate automation kit post. The solution facilitates installation of a self-supporting gate due to an integrated trolley perfectly selected as per the length of the gate.
A perfect gadget for those that say a letterbox disturbs the look of the fence. The Invisible Post Box has been designed just for them. The letterbox looks very discreet, it does not stick outside the fence line, thus keeping an aesthetic line with no bumps or protruding elements. (*available with the models p82 and p102).
A lamp equipped with a dusk sensor. It is compatible with all the 11 options of the Konsport EQ post. It is made of stainless steel of the same texture as any other equipment option of the EQ post. The lamp illuminates the equipment panel which makes its night operation easier.
Is the regular colour chart not enough for you? Select a fence coated with a metallic paint or in the fine structure variant.
Iron out even the smallest details of fence. Replace regular handrails with impressive stainless steel ones. Their solid shape and simple design will make your fence remarkably elegant. / The long handrail in the wicket and swing gate is installed in accordance with the visualization (the handrail is instalThe installed equal with the bottom frame of the wicket and the gate or centrally).
